The most expensive way to learn what a mold needs is to cut it first. A leather-goods brand once signed off on a logo plate after a long back-and-forth on the front — the logo, the finish, the proportions — and never mentioned how it mounted. We did not ask either, and cut the tool with our standard rivets. The front came out exactly as approved. The back fit nothing: the rivets were about 2.5 mm long against 3 mm full-grain leather, so they could not pass through, and they sat at 15 mm spacing while the brand had already punched their panels at 20 mm. A perfect front, bolted to nothing.
A mold is committed metal. Once it is cut, changing the structure means cutting it again — so the real work happens before tooling, confirming the things a front rendering never shows. That miss was ours to fix, and we re-cut the rivets and re-spaced them to match the punched holes; the cleaner version is to settle the back before the mold exists, not after.
Before opening a mold, four things are worth confirming: how the part mounts and what it mounts to, whether the structure will actually cast, whether the finish suits the design, and who owns the tooling at the end. This guide walks through the failures that taught us each one, and the review we run before cutting steel.
Start from the back, not the front
The most common way a logo plate goes wrong is on the side nobody reviews. The front gets all the attention — that is where the brand lives — so the mounting almost always comes up last, if it comes up at all. But the back is what decides whether the finished part can actually be assembled, and it is the part a mold locks in permanently.
The rivet case above is the textbook version: a front everyone approved, mounted on hardware that did not match the customer's panels. The fix on our side was straightforward once the part existed, but it cost a sampling round that confirming the back up front would have saved. So the first thing to settle is how the plate attaches and what it attaches to.
- Mounting method: rivets, screws, sew-on holes, or an adhesive back
- Exact dimensions — rivet length and spacing, hole positions — and any holes already set on your side
- The material it mounts to and its thickness (leather, PU, canvas, nylon, board)
- Fit tolerance: how tightly it has to align with your panels
Structure a screen hides: draft, wall thickness, fillets

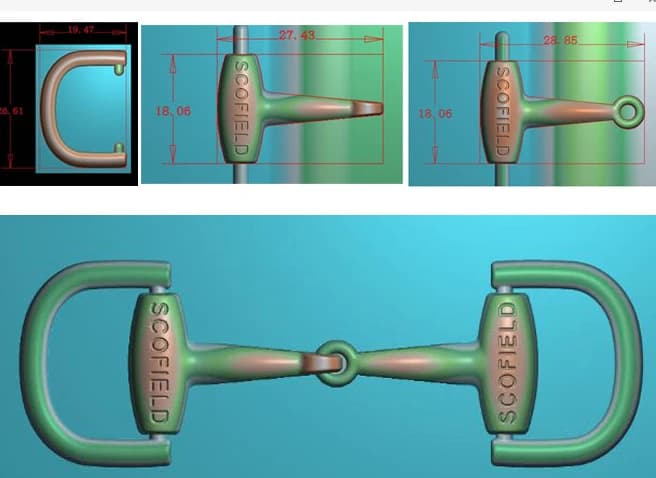

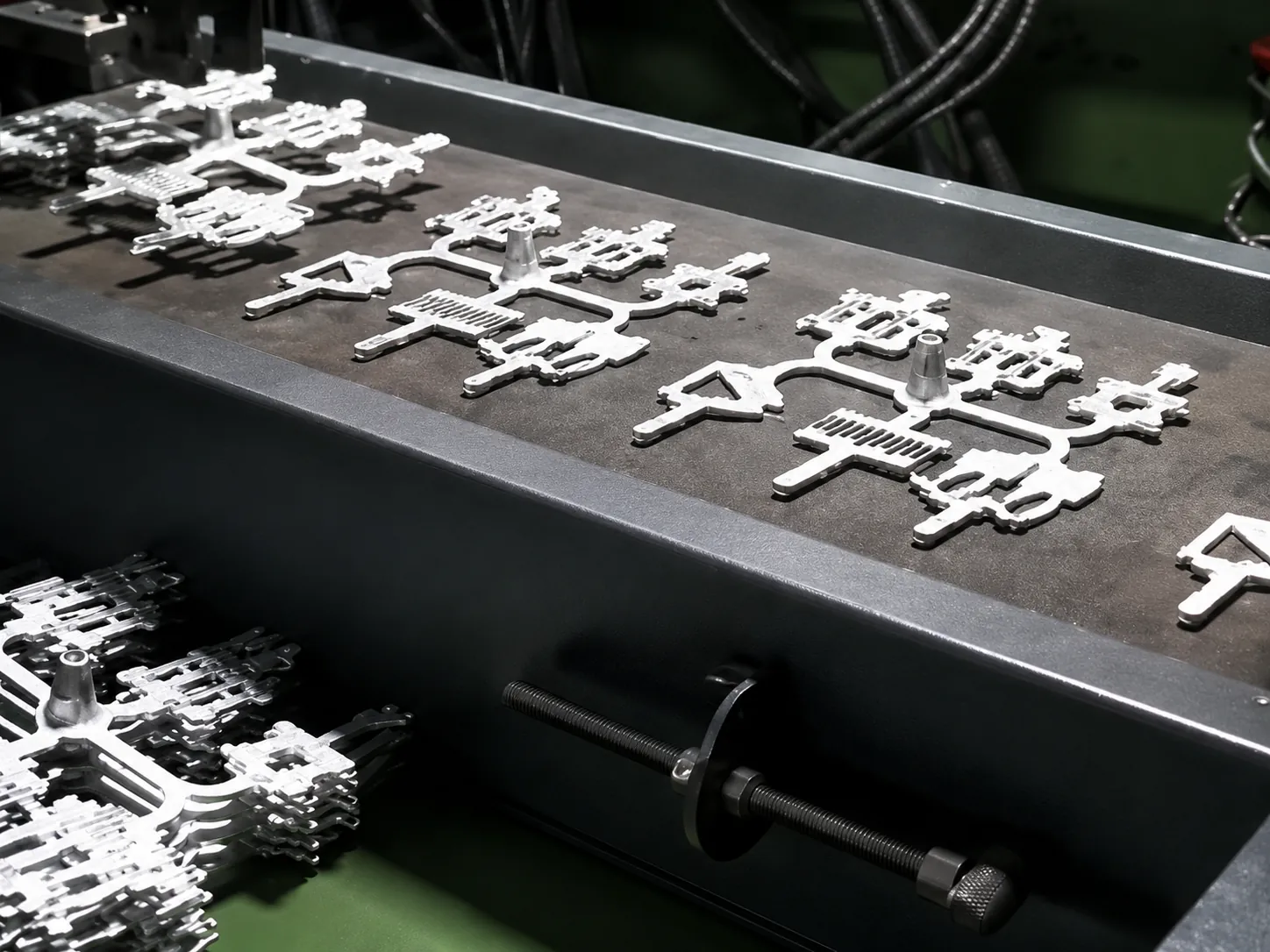

A logo plate is die cast, and casting has rules a flat on-screen design does not show. Two of them cause most of the surprises at first sample.
The first is draft angle. A designer from a graphics background once handed us a plate drawn with perfectly vertical side walls — no taper at all. On screen it looked crisp. Out of the tool, the part dragged against the mold as it ejected and came back scored down every side wall. The file was flat, which is true and beside the point; without a slight taper, the metal scrapes its way out.
The second is uneven wall thickness. Another design ran about 3 mm thick through the logo and roughly 1 mm at the edges. We flagged that the thick center would likely sink as it cooled; the customer wanted to run it as drawn, and the first sample came back dented exactly where the metal was heaviest. We evened the wall out, adjusted the casting, and the dishing went away.
None of this means a design has to be timid — it means the structure gets checked against the process before the steel is cut. In our experience these are reasonable starting points for a cast zinc alloy plate:
- Draft angle: we typically want at least ~0.5° on walls, and ~1° or more on visible faces
- Wall thickness: kept reasonably even — large step changes are where sink shows up; around 1.5-2.5 mm casts predictably
- Inside corners: a small radius (about R0.3 mm) instead of sharp corners, to avoid stress points and tool cracking
- Undercuts: anything that cannot release without a slide gets flagged early
- Relief: roughly 0.2 mm raised or 0.3 mm recessed to stay readable
The review we run before cutting steel
Every one of those failures now gets caught at the same place: a review that happens before tooling, not after the first sample. We run it in stages, each handled by the people who own that part of the process.
A tooling engineer goes through the structure first — draft, wall thickness, radii, undercuts, relief — and marks anything that will not cast cleanly. A project engineer checks the assembly side: how it mounts, the dimensions and spacing, and the material and thickness it has to sit on. Plating reviews whether the finish can actually reach the recesses and suits the chosen material. Production looks at whether the design will run sensibly at volume and what mold life is realistic for it.
Then it all lands on a single marked-up sheet — every change we are recommending and why, with the structure and dimensions to be confirmed — and nothing gets cut until that is signed off. It adds a little time at the front, but it catches the large majority of the problems that would otherwise only surface in metal.
Mold life, re-cuts, and when something's wrong
Two questions come up on almost every tooling project, and both deserve a straight answer.
How long will the mold last? It depends — on the design, the alloy, and how the tooling is maintained over its life. Rather than quote a blanket number, we give a realistic estimate for your specific part, and we maintain the tooling we run so it holds up across reorders.
What if the first sample is wrong? If a problem traces back to something our review should have caught — a draft angle we missed, a fit we did not confirm — correcting the mold is on us, not on you. If you decide to change the structure after sign-off — a different mounting method, a reshaped profile, a dimension moved well beyond a minor tweak — we scope and quote that change first, so there is no surprise on either side.
Who owns the mold
The tooling is your asset. Once the mold is paid for in full, it belongs to you — not to us. We keep it ready for your reorders while it is in production with us, and if you ever want it moved, it is yours to take.
We also do not run your mold for anyone else. Your tooling produces your parts; without your written agreement, it does not get used for a third party. In all the years we have been cutting molds, ownership has never been a point of dispute, because the line is simple: you paid for it, it is yours.
What to send before we quote tooling
You do not need a finished engineering drawing to start a tooling conversation — you need the part's real job described honestly. The clearer the back of the part and the surface it lives on, the closer the first quote and the fewer surprises at first sample.
- What the part is and where it mounts — the material and its thickness
- Mounting method, plus any hole positions or spacing already set on your side
- Logo or artwork, with raised and recessed areas marked
- Finish reference, and any dimension or tolerance that has to be hit
Practical questions buyers often ask
Who owns the mold once it's made?
You do. Once the tooling is paid for in full it is your asset, and we do not run it for any third party without your written agreement. It produces your parts only.
What if the first sample doesn't fit or eject cleanly?
If it traces back to something our pre-tooling review should have caught, correcting the mold is on us. We work through the fix and re-sample before anything goes to bulk.
How long does a custom mold last?
It depends on the design, the alloy and how the tooling is maintained, so we give a realistic estimate for your specific part rather than a fixed figure — and we maintain the tooling we run across reorders.
Can the mold be changed after it's cut?
Small adjustments are a normal part of getting the part right. Larger structural changes — a new mounting method, a reshaped profile — we scope and quote first so the cost is clear before we touch the tool.
Tell us what the part is, what it mounts to, and how it's fixed in place — before any steel is cut. We'll review the structure, flag anything that won't cast or fit, and confirm it with you, so the first mold is the right one.
